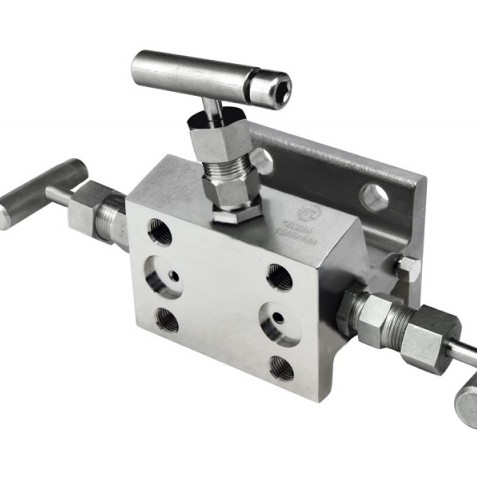

2 Ways 3 Valves, Flange Coupling to transmitter, profile type (Ref. MB4-23)
| Linea | Family |
|---|---|
| Manifolds | MB Series: Manifold Max pressure 250 bar |
| Application |
|---|
| Food, Power, Gas & Bellows; Cryogenic, Nuclear, Oil & Bellows; Gas, Chemical, Water Treatment |
DESCRIPCIÓN:
2-WAY MANIFOLD, 5 VALVES
DIRECT COUPLING INLET H.1/2 “NPT
MAX. PRESSURE UP TO 3.705 PSI (260 BAR)
Manifold direct coupled to transmitter with H.1/2 “NPT inlets on manifold body.
Attaches to transmitter with four 7/16 “UNF screws (L=25) and two PTFE or metalloplastic gaskets.
Screw 7/16 “UNF Ref. 40943504 for AC Manifold. STAINLESS STEEL
Screw 7/16’UNF Ref. 40943502 for AC Manifold. CARBON
PTFE gasket Ref. 11267630 for Manifold with PTFE packing
Metalotnatic gasket Ref. 41195801 for Manifold with GRAFOIL® Manifold
These screws and gaskets are supplied together with the Manifold Coupling dimensions S/DIN 19213 except for gasket system and sockets.
