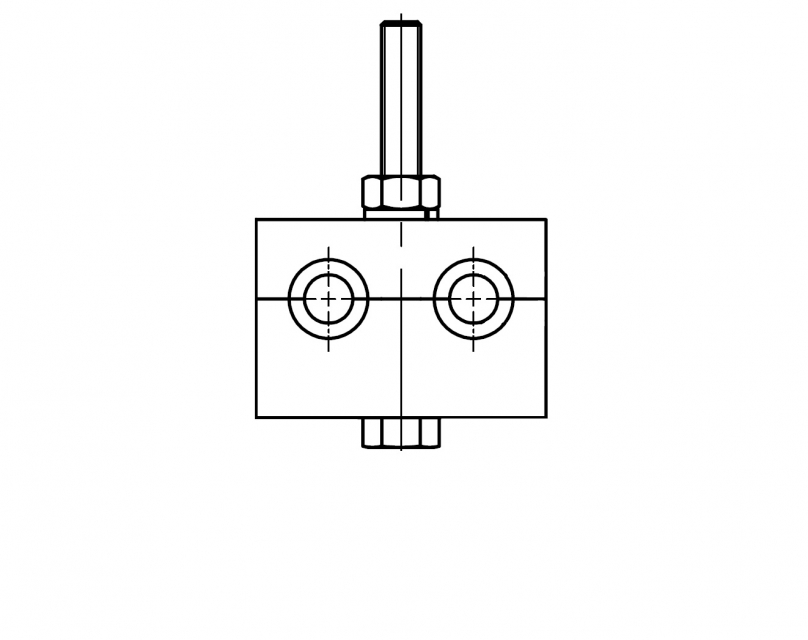

Clamp 1/4″ O.D
| Linea | Family |
|---|---|
| Fittings and Piping | Instrumentation clamp |
| Application |
|---|
| Food, Power, Gas & Bellows; Cryogenic, Nuclear, Oil & Bellows; Gas, Chemical, Water Treatment |
DESCRIPCIÓN:
CHARACTERISTICS
Materials:
– INOX. clamp for standard fabrication, ASTM A479-304 conventional and ASME SA479-304 nuclear fabrication “C”.
– Nuts and bolts made of electrolytic zinc plated carbon steel, minimum thickness 9μ, quality 8.8
– Maximum tightening torque 0.30 Kgf-m = 2.94 Nm
– Complies with ASME III Subsection NF Section 4725
The casting number shall be engraved on each of the two jaw halves of the jaws for identification with the corresponding quality certificate.
Direction of clamped loads per jaw.
