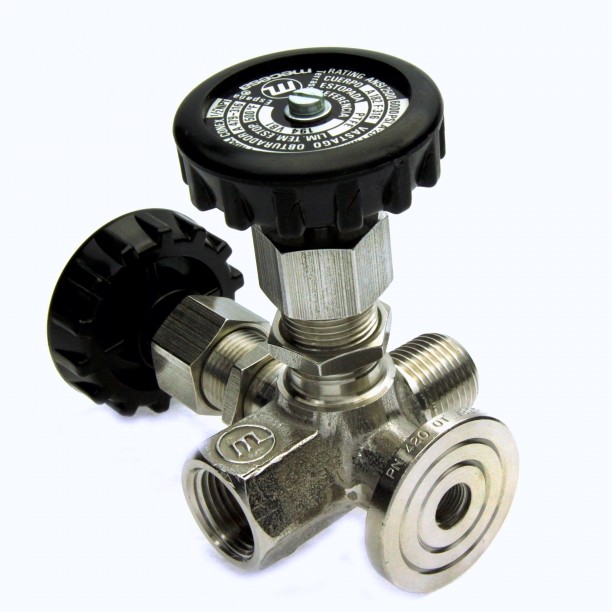

Valves Pressure Gauge – 2 Valves
| Linea | Family |
|---|---|
| Instrumentation valves | Valves for manometer |
| Application |
|---|
| Food, Power, Gas & Bellows; Cryogenic, Nuclear, Oil & Bellows; Gas, Chemical, Water Treatment |
DESCRIPCIÓN:
PRESSURE GAUGE VALVES
MAX. PRESSURE UP TO 5,140 PSI (360 BAR)
CHARACTERISTICS:
RATING:
STAINLESS STEEL. Graphite Lined
5000 PSI from -20°F to 100°F
3053 PSI at 662°F Max.
STAINLESS STEEL, PTFE Lined
5000 PSI from -20°F to 100°F
Maximum PTFE Temperature Rating 446°F
CARBON STEEL Graphite Lined
5140 PSI from -20°F to 100°F
4200 PSI at 482°F Maximum
PTFE-plated CARBON STEEL
5140 PSI from -20°F to 100°F
PTFE Maximum Service Temperature 446°F
PTFE and Graphite PTFE brazed brass
Maximum 2500 PSI at 100°F
Maximum service temperature 402°F
Connections: NPT (ANSI/ASME B1.20.1) and ISO 228.
Materials:
Constructed of AC.INOX. Grade 316, AC. CARBON and BRASS.
Body forged in the three materials.
Stem and locking punch AC. STAINLESS STEEL. Grade 316 in all versions.
Handwheel in POLYAMIDE 6 black colour.
All types can be supplied with bleed screw.
Valves suitable for panel mounting.
